About This Architecture

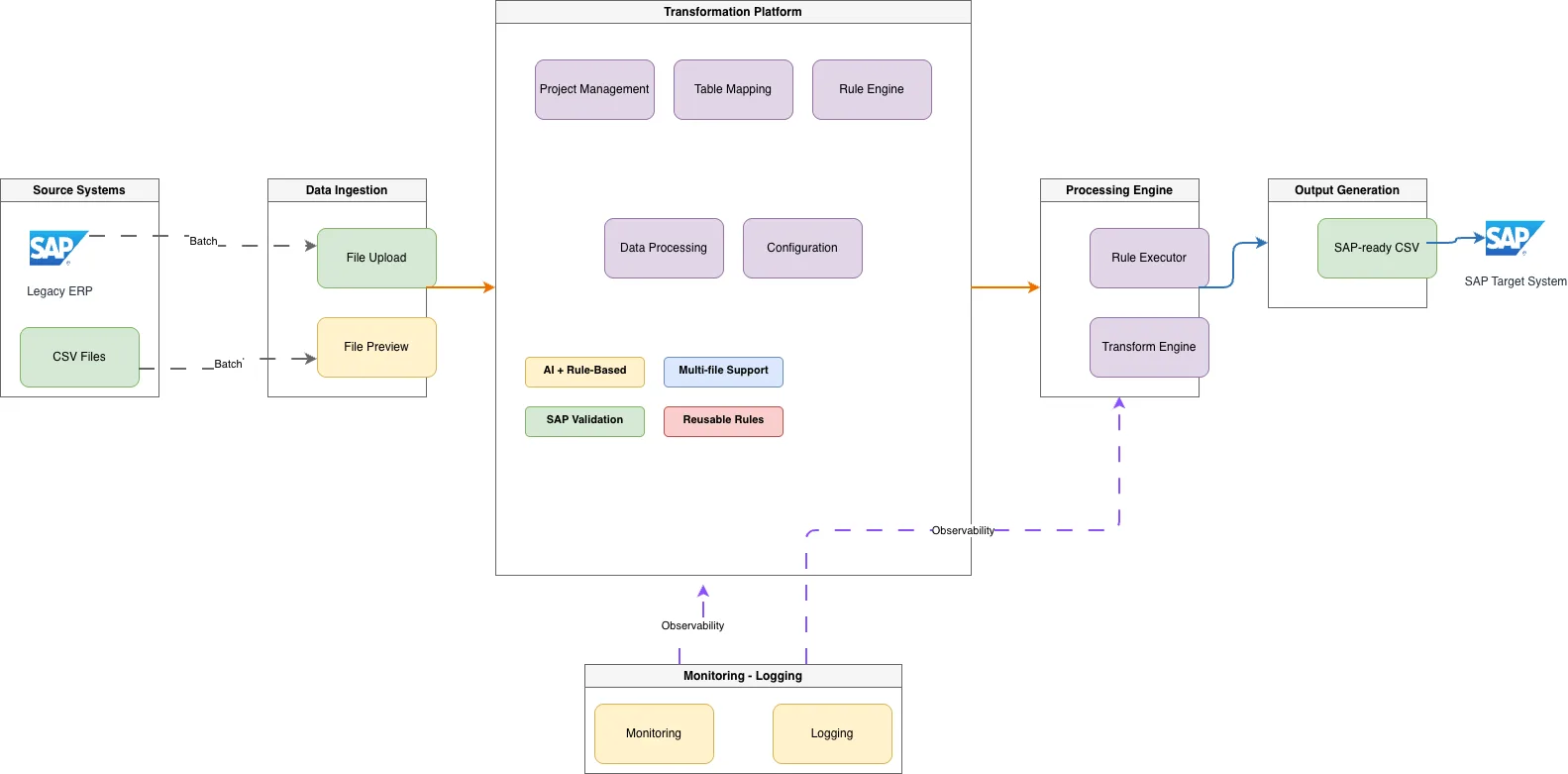

SAP migration data transformation pipeline orchestrates extraction from legacy ERP and CSV sources through intelligent ingestion, mapping, and rule-based processing into SAP-ready outputs. Data flows from source systems through File Upload and Preview stages into a Transformation Platform that applies AI and rule-based logic via a Rule Engine and Processing Engine. The pipeline validates data against SAP requirements, executes reusable transformation rules, and generates compliant CSV exports to the SAP Target System while Monitoring and Logging track pipeline health across all stages. This architecture solves the critical challenge of translating heterogeneous legacy data formats into SAP-compliant structures without manual rework. Fork this diagram on Diagrams.so to customize table mappings, rule configurations, and validation logic for your specific migration scope.

People also ask

How do I design a data pipeline to transform legacy ERP and CSV data into SAP-compliant format?

This diagram shows a complete SAP migration pipeline: ingest data from Legacy ERP and CSV Files via File Upload and Preview, apply AI and rule-based transformations through a Rule Engine and Processing Engine, validate outputs against SAP requirements, and generate SAP-ready CSV exports. Monitoring and Logging track pipeline execution across all stages.
