About This Architecture

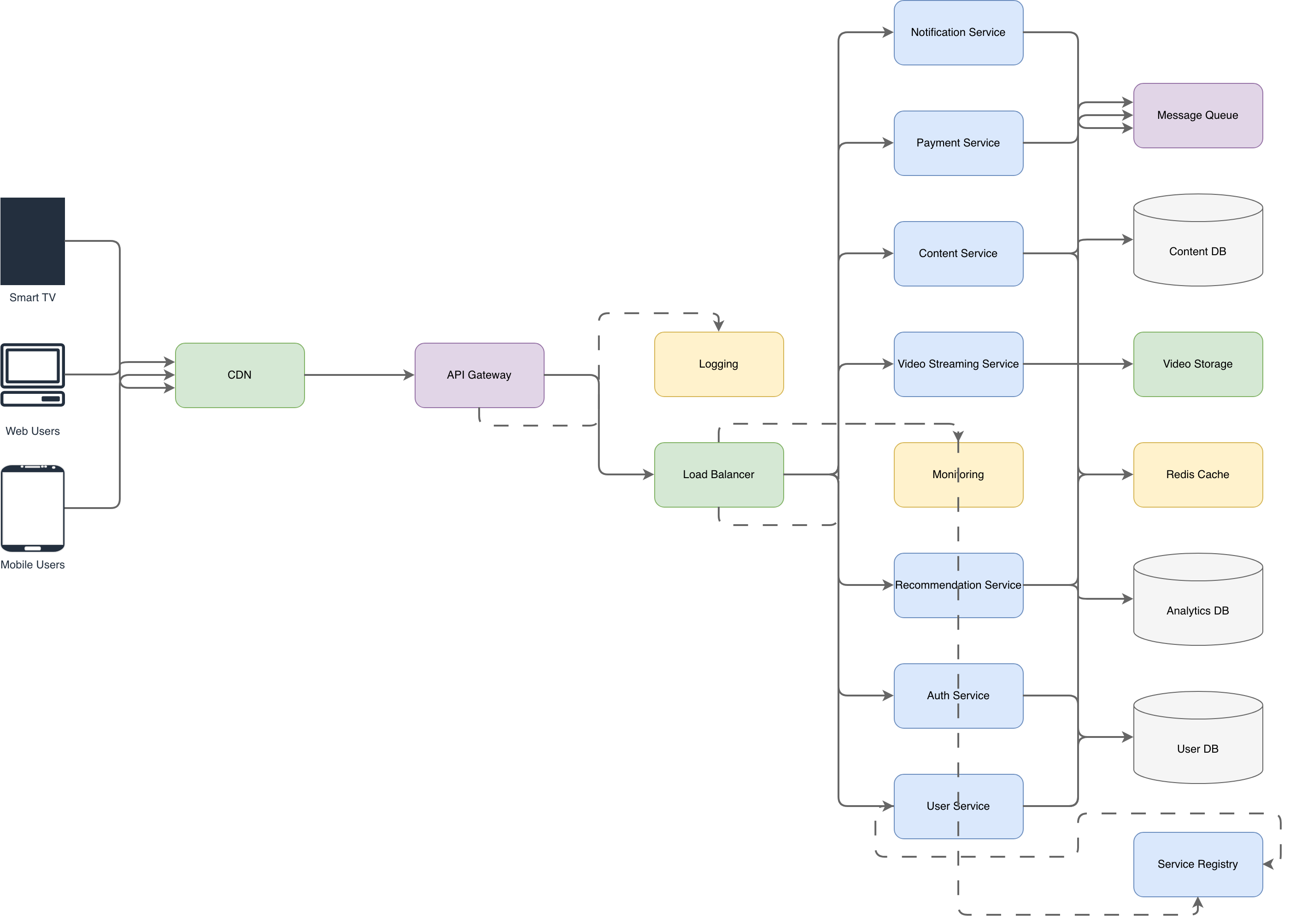

Netflix-style microservices architecture demonstrates a production-grade streaming platform with distributed services handling user management, authentication, content delivery, recommendations, video streaming, payments, and notifications. Traffic flows from Web Users, Mobile Users, and Smart TV through CDN to API Gateway, then Load Balancer distributes requests across seven independent microservices. User Service and Auth Service share User DB with Redis Cache for session management, Content Service manages Content DB, Recommendation Service analyzes Analytics DB, Video Streaming Service accesses Video Storage, while Payment Service and Notification Service communicate asynchronously via Message Queue. Service Registry enables dynamic service discovery, Monitoring tracks system health, and Logging captures API Gateway events. Fork this diagram on Diagrams.so to customize service boundaries, add your own microservices, or export as .drawio for team documentation.

People also ask

How do you design a microservices architecture for a streaming platform like Netflix?

A Netflix-style microservices architecture uses CDN for content delivery, API Gateway and Load Balancer to route traffic across independent services (User, Auth, Content, Recommendation, Video Streaming, Payment, Notification), Redis Cache for performance, Message Queue for async communication, and Service Registry for dynamic discovery.
