About This Architecture

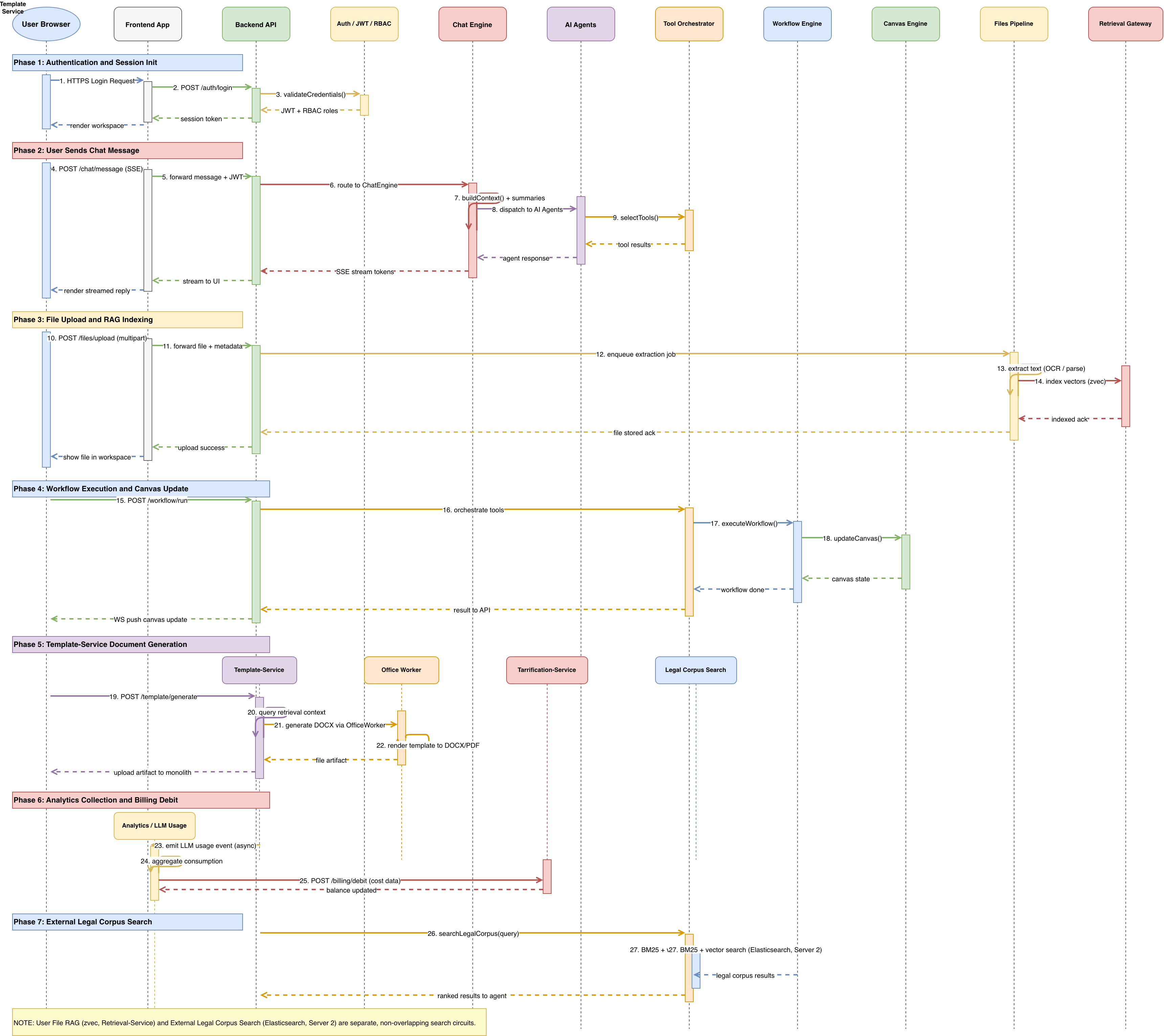

LegalTech platform orchestrates seven sequential interaction phases from user authentication through AI-driven document generation and billing. User browser initiates JWT-based auth with backend API, then sends chat messages routed through Chat Engine to AI Agents and Tool Orchestrator for processing. File uploads trigger RAG indexing via Files Pipeline and Retrieval Gateway, while Workflow Engine coordinates canvas updates and Template Service generates legal documents with external Legal Corpus Search integration. Analytics and Tarrification services track LLM usage and billing in real time. This architecture demonstrates how to integrate authentication, conversational AI, document retrieval, workflow automation, and monetization into a cohesive legal tech platform. Fork and customize this diagram on Diagrams.so to adapt phases, add compliance checkpoints, or modify service boundaries for your deployment.

People also ask

How does a LegalTech platform orchestrate user authentication, AI chat, file retrieval, document generation, and billing across multiple services?

This diagram shows seven sequential phases: Phase 1 establishes JWT-based authentication, Phase 2 routes chat messages through AI Agents and Tool Orchestrator, Phase 3 indexes uploaded files via RAG, Phase 4 executes workflows and updates canvas, Phase 5 generates legal documents via Template Service, Phase 6 tracks LLM usage for billing, and Phase 7 searches external Legal Corpus. Each phase coor
