About This Architecture

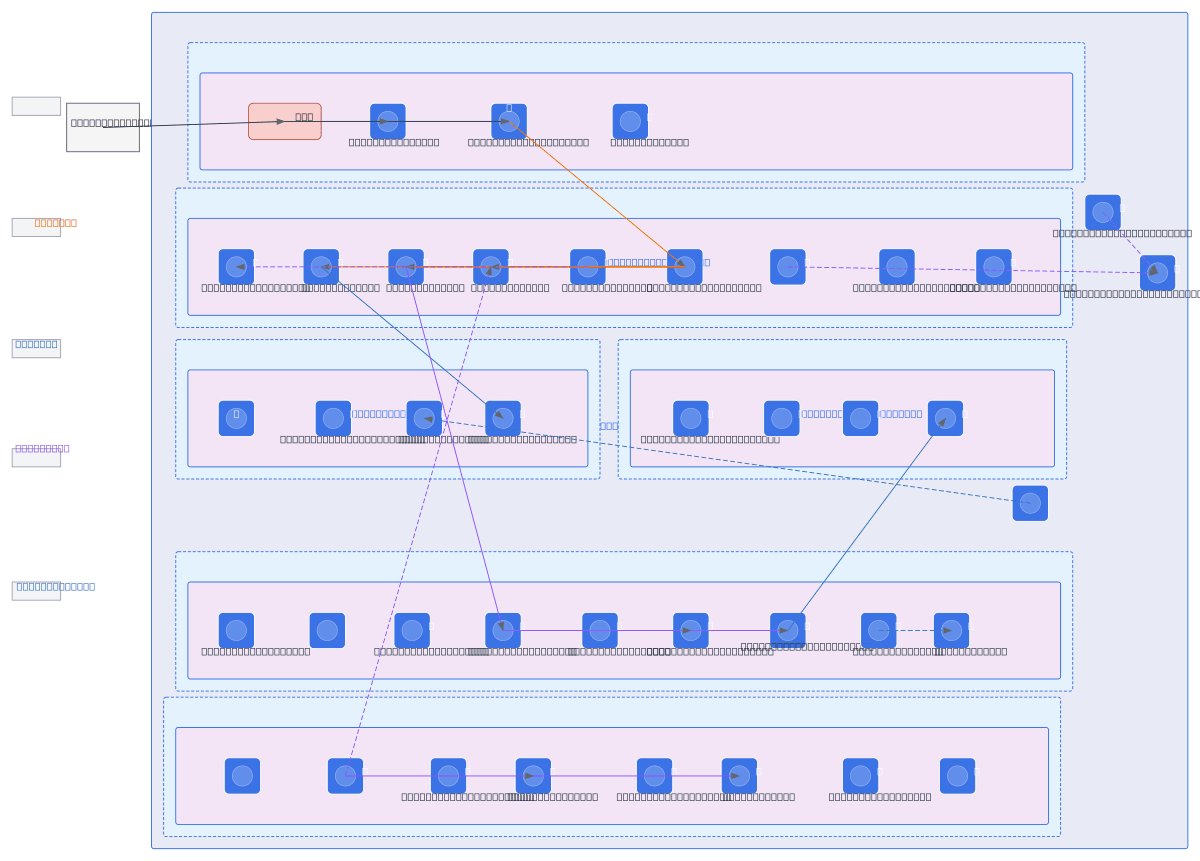

Low-latency real-time bidding (RTB) platform on Kubernetes with ingress, bidding, caching, streaming, and observability namespaces. Traffic flows from Ad Exchange through WAF and Ingress Gateway to bidder pods, which query Redis for feature caching and Kafka for event streaming, with Flink processing and ClickHouse analytics. HPA scales bidder deployments dynamically, while OTEL collectors feed metrics to Prometheus and Grafana for full observability. This architecture demonstrates production-grade Kubernetes patterns for sub-100ms RTB decisions at scale. Fork and customize this diagram on Diagrams.so to match your RTB infrastructure topology and namespace strategy.

People also ask

How do I design a low-latency real-time bidding platform on Kubernetes with caching, streaming, and observability?

This diagram shows a production RTB platform using Kubernetes namespaces to isolate ingress, bidder pods, Redis caching, Kafka-Flink streaming, and ClickHouse analytics. Bidder pods scale via HPA, query Redis for features, and stream events through Kafka to Flink processors that write to ClickHouse, while OTEL collectors and Prometheus monitor all layers for sub-100ms latency.
