About This Architecture

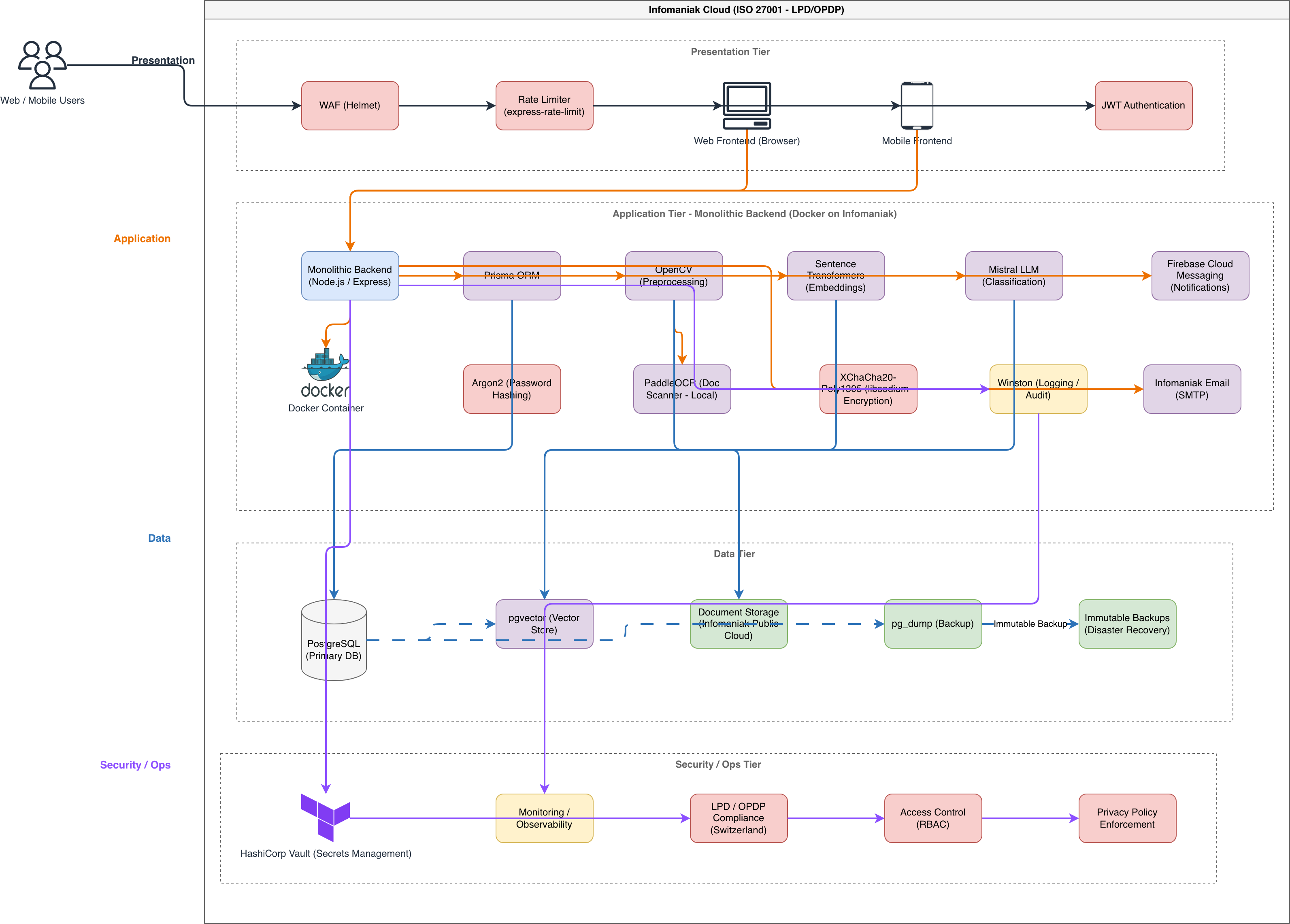

Healthcare monolithic app on Infomaniak Kubernetes with ISO 27001 and Swiss LPD/OPDP compliance built on Node.js/Express backend, PostgreSQL with pgvector, and integrated ML services for document scanning and classification. Traffic flows through WAF and rate limiting to the presentation tier, then to the containerized monolithic backend handling authentication, encryption, and audit logging via Winston. Data tier includes PostgreSQL primary, pgvector embeddings, Infomaniak object storage, and immutable backups with pg_dump for disaster recovery. Security layer enforces RBAC, HashiCorp Vault secrets management, Argon2 password hashing, and XChaCha20-Poly1305 encryption to meet Swiss regulatory requirements. Fork this diagram to customize compliance controls, adjust backup retention, or integrate additional observability tools for your healthcare workload. The architecture demonstrates how monolithic backends can meet stringent data residency and encryption standards while leveraging Infomaniak's Swiss-hosted infrastructure.

People also ask

How do I build a HIPAA and Swiss LPD-compliant healthcare app on Kubernetes with data residency requirements?

This diagram shows a monolithic Node.js/Express backend on Infomaniak Kubernetes with PostgreSQL, pgvector for embeddings, and immutable backups meeting Swiss regulatory standards. Security layers include WAF, JWT authentication, RBAC, HashiCorp Vault secrets, Argon2 hashing, and XChaCha20-Poly1305 encryption to ensure data protection and compliance.
