Firebase IoT Incubator Database Schema

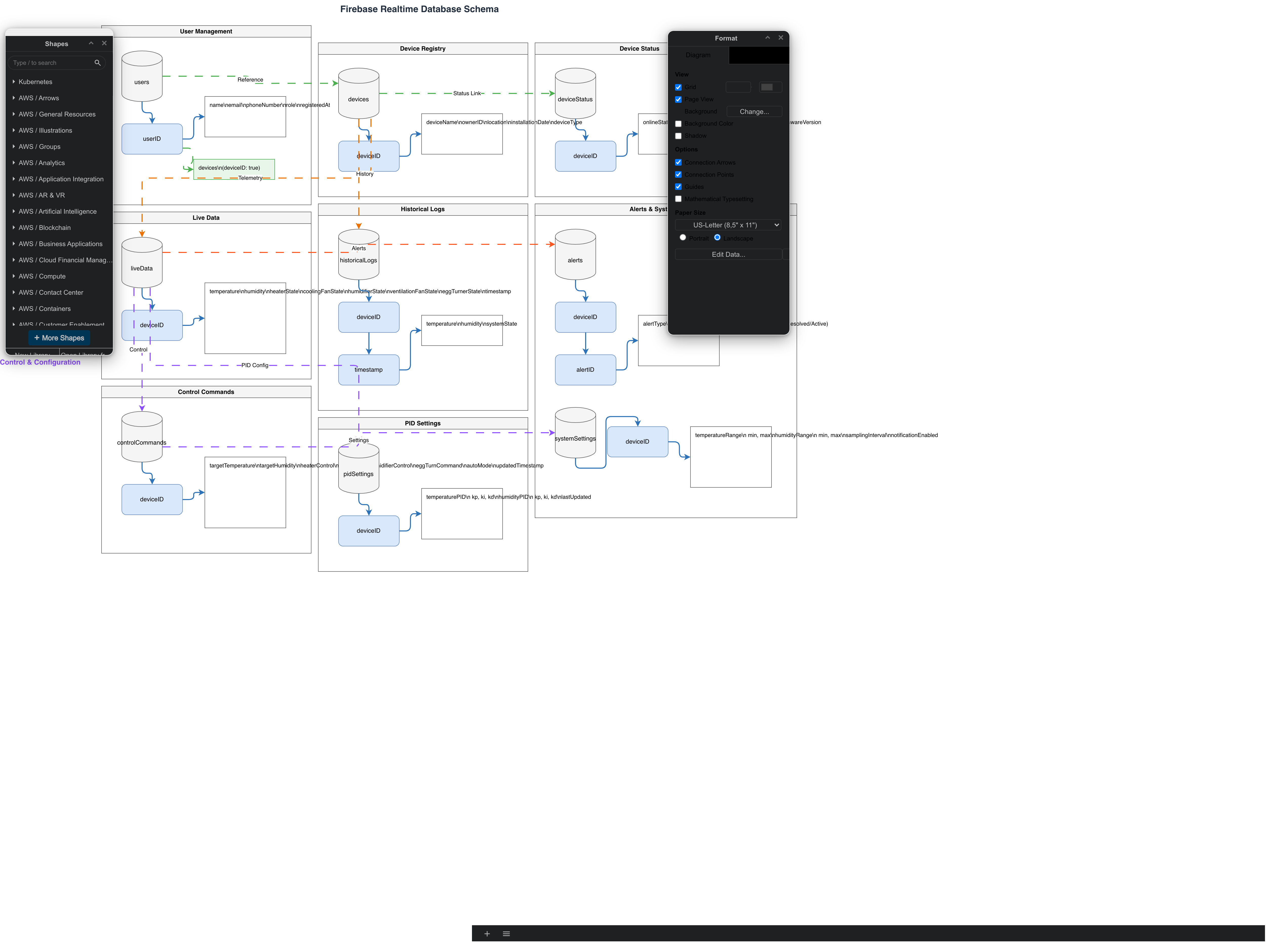

general · architecture diagram.

About This Architecture

Firebase Realtime Database schema for an IoT incubator monitoring system organizes user management, device registry, telemetry streams, and control logic across eight root collections. Live sensor data flows from devices through liveData nodes capturing temperature, humidity, and actuator states, while historicalLogs archives timestamped readings for trend analysis. Control commands with PID tuning parameters enable precise environmental regulation, and alerts track threshold violations with resolution status. This schema demonstrates Firebase's denormalized data modeling for sub-second synchronization across mobile and web dashboards monitoring agricultural or laboratory incubators. Fork this diagram on Diagrams.so to customize field structures, add security rules annotations, or export as documentation for your Firebase IoT project.

People also ask

How do I structure a Firebase Realtime Database for IoT device monitoring with live telemetry and control commands?

Organize Firebase collections into device registry, deviceStatus for connectivity, liveData for real-time sensor streams, historicalLogs for time-series storage, controlCommands with PID settings for actuator logic, and alerts for threshold violations. This schema enables sub-second synchronization across clients while maintaining query efficiency through denormalized deviceID keys.
