About This Architecture

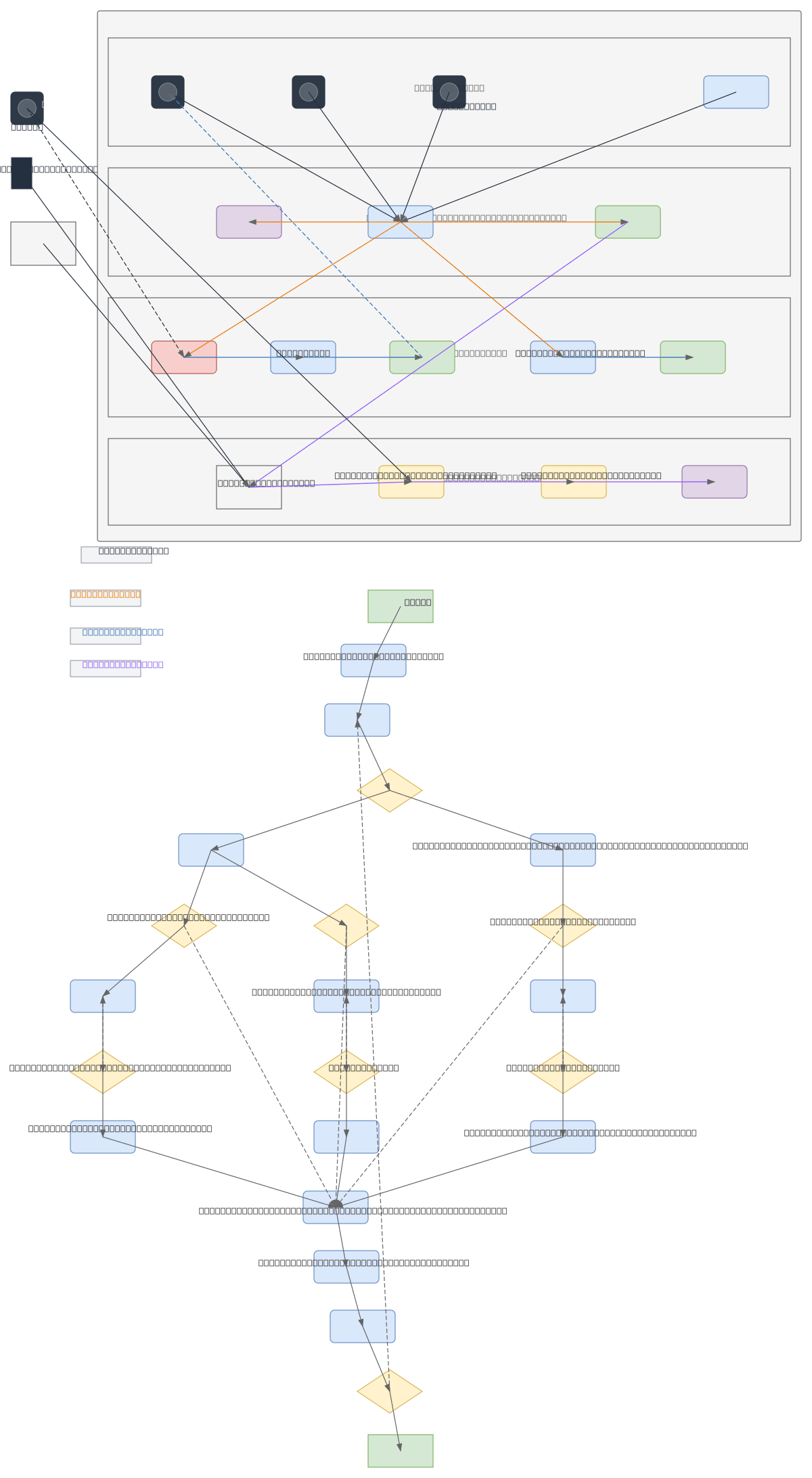

Dual-mode precision irrigation system combining local ESP32 microcontroller logic with cloud-based monitoring for fluted pumpkin cultivation. Soil moisture, temperature, humidity, and rain sensors feed the ESP32 CPU, which executes threshold-based decisions to trigger water pumps and protective roofing via relay modules and DC motors. The ESP32 Wi-Fi module streams real-time data to an IoT cloud platform where farmers access dashboards, analytics, and alerts from mobile apps. This architecture balances autonomous edge processing with remote oversight, reducing latency-critical irrigation decisions while enabling data-driven farm management. Fork this diagram to customize sensor types, add additional crop zones, or integrate with specific IoT platforms like AWS IoT Core or Azure IoT Hub. The dual-mode approach exemplifies hybrid edge-cloud design for resource-constrained agricultural environments.

People also ask

How do I design an IoT precision irrigation system that combines local ESP32 control with cloud monitoring for automated crop watering?

This diagram shows a complete dual-mode architecture where soil moisture, temperature, and rain sensors connect to an ESP32 microcontroller that executes local threshold logic to control water pumps and protective roofing. Simultaneously, the ESP32 streams data via Wi-Fi to an IoT cloud platform, enabling farmers to monitor real-time dashboards, access analytics, and receive alerts from mobile app
