About This Architecture

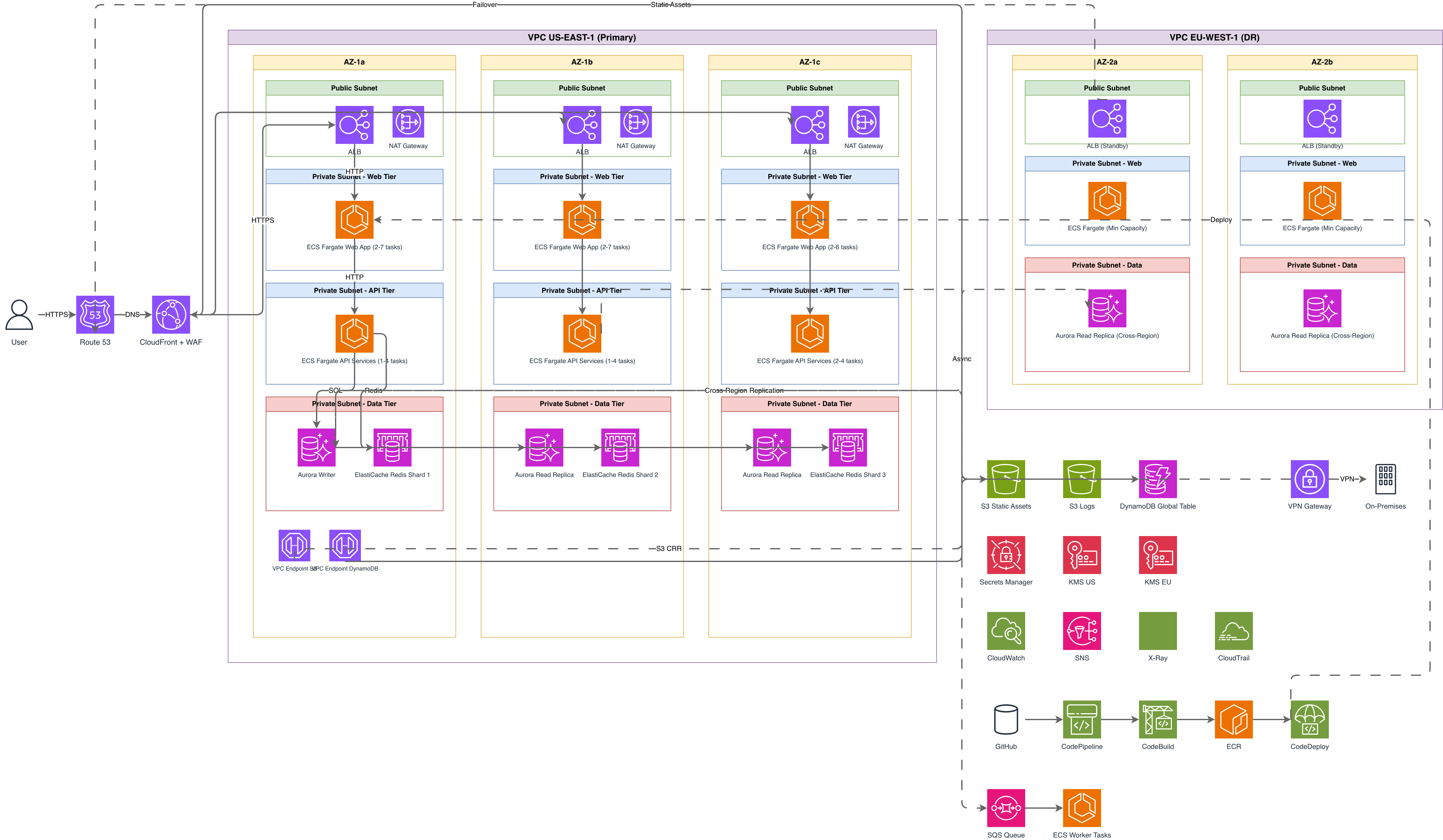

Multi-region AWS architecture with active-passive failover across US-EAST-1 and EU-WEST-1 for disaster recovery. Route 53 routes traffic through CloudFront with WAF to a three-tier VPC spanning three availability zones, using ECS Fargate for auto-scaling web and API services, Aurora with read replicas, and ElastiCache Redis sharding. This pattern demonstrates enterprise-grade resilience with cross-region Aurora replication, DynamoDB Global Tables, and a warm standby DR region with minimal capacity. Fork this diagram on Diagrams.so to customize task counts, add regions, or export as .drawio for your architecture documentation. The CI/CD pipeline with CodePipeline, CodeBuild, and CodeDeploy enables blue-green deployments to ECR-hosted containers.

People also ask

How do I design a multi-region disaster recovery architecture on AWS with ECS Fargate and Aurora?

Deploy a primary three-tier VPC in US-EAST-1 with ECS Fargate services across three AZs, Aurora with read replicas, and ElastiCache Redis sharding. Configure a warm standby in EU-WEST-1 with cross-region Aurora replication and Route 53 failover routing.
