About This Architecture

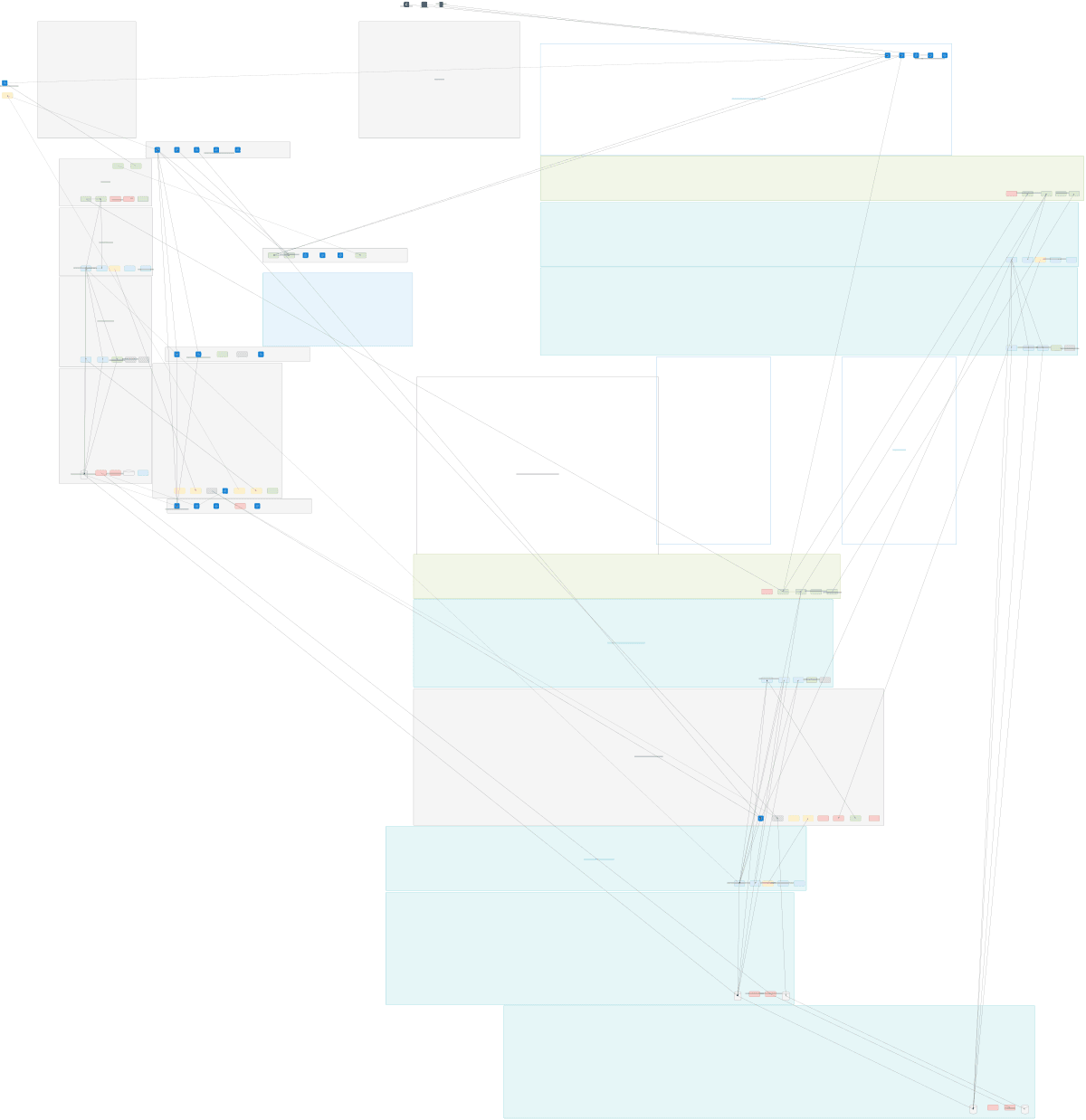

Citrix Enterprise Architecture on AWS Multi-AZ deploys Citrix ADC, Gateway, Delivery Controllers, and VDA workers across two availability zones for high availability and disaster recovery. Traffic flows through Route 53 DNS and CloudFront CDN to WAF-protected Citrix ADC instances in public DMZ subnets, which route to application and VDA worker subnets in private networks. SQL Server databases, Active Directory, and Citrix management services are replicated across AZ-1 and AZ-2, with Citrix Cloud Control Plane and Analytics providing centralized monitoring and security. This architecture demonstrates multi-AZ resilience, least-privilege subnet segmentation, and integration with AWS native services for enterprise-scale virtual desktop infrastructure. Fork and customize this diagram on Diagrams.so to match your organization's region, CIDR blocks, and Citrix licensing model.

People also ask

How do I design a highly available Citrix virtual desktop infrastructure on AWS across multiple availability zones?

This diagram shows a production Citrix Enterprise deployment spanning AWS AZ-1 and AZ-2 with redundant Citrix ADC, Gateway, Delivery Controllers, and VDA workers in private subnets. SQL Server databases and Active Directory are replicated across zones, while Route 53 DNS and CloudFront CDN provide global routing and caching. Citrix Cloud Control Plane and Analytics deliver centralized management a
