AWS Web Application Architecture

aws · network diagram.

Diagrams.so

About This Architecture

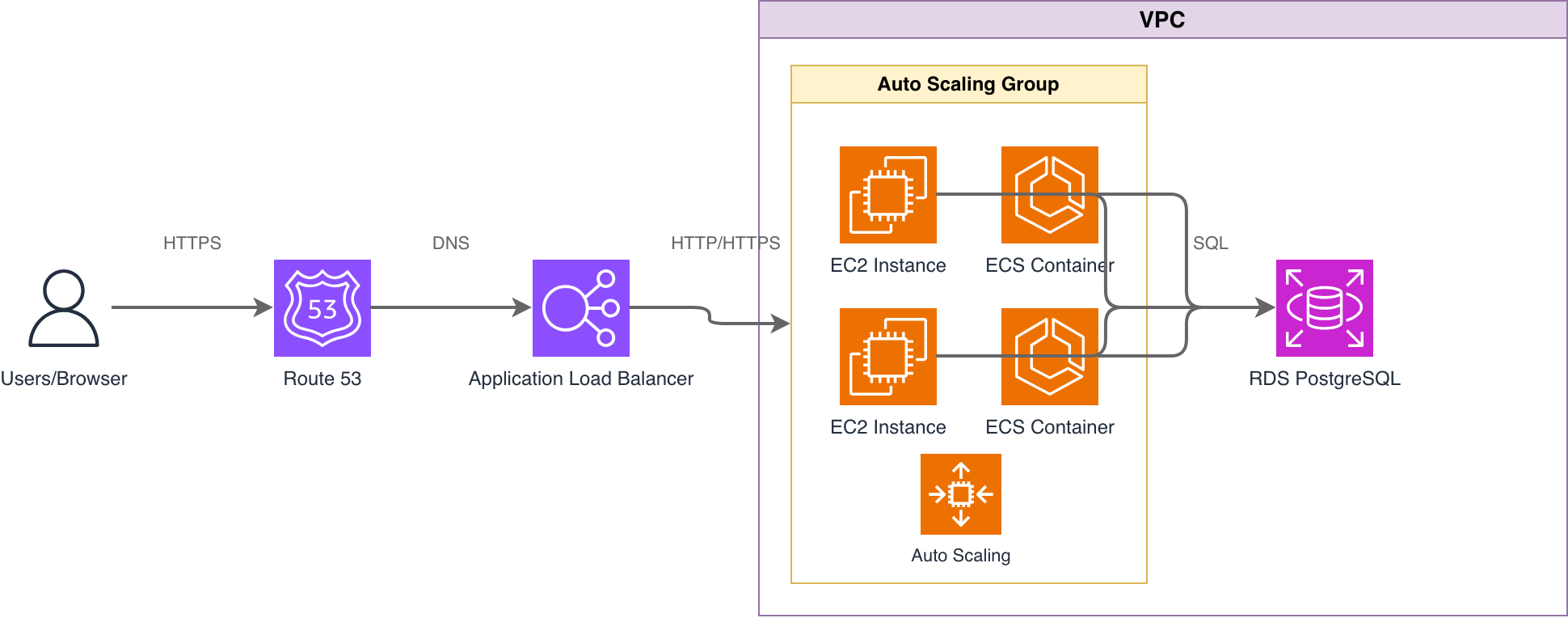

Highly available AWS web application architecture combining Route 53 DNS resolution with Application Load Balancer for intelligent traffic distribution. User requests flow through HTTPS to an Auto Scaling Group containing EC2 instances and ECS containers within a VPC. Both compute options connect via SQL to RDS PostgreSQL, enabling flexible deployment strategies with managed database reliability. Ideal for architects evaluating EC2 vs containerized workloads while maintaining consistent data persistence patterns. Fork this diagram on Diagrams.so to customize instance types, add caching layers, or extend with multi-AZ configurations.

People also ask

How do I design a scalable AWS web application with load balancing and managed database?

Use Route 53 for DNS, Application Load Balancer for traffic distribution, Auto Scaling Groups with EC2 or ECS containers for compute, and RDS PostgreSQL for managed database. This diagram shows the complete flow within a VPC.

AWS Web Application Architecture

AWSintermediateAuto ScalingRDS PostgreSQLApplication Load BalancerECSRoute 53
Domain: Cloud AwsAudience: AWS solutions architects designing scalable web applications
