About This Architecture

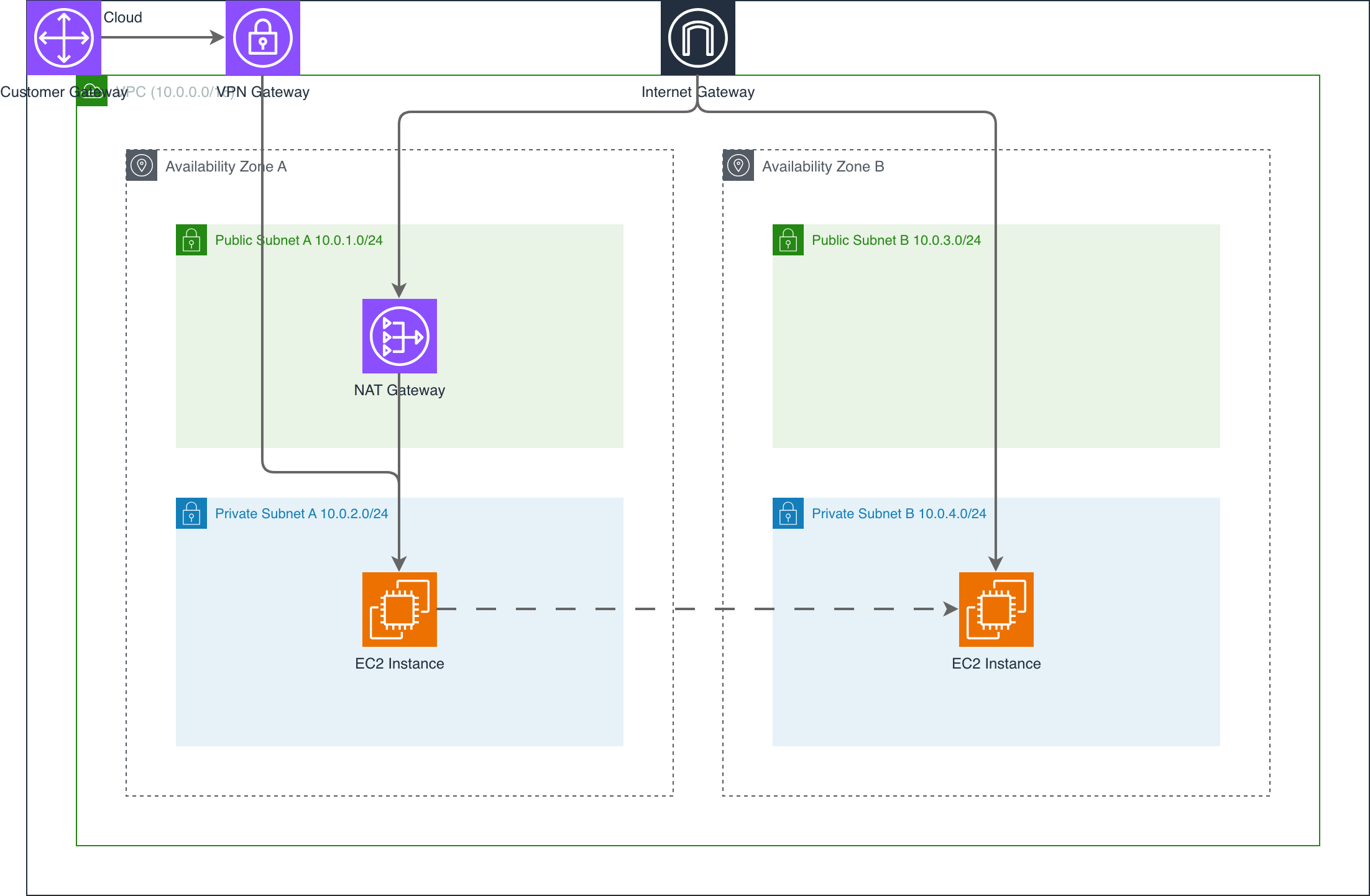

Multi-AZ VPC architecture spanning two availability zones with public and private subnet tiers for fault-tolerant AWS deployments. Traffic flows from the Internet Gateway through NAT Gateway to private EC2 instances, while a VPN Gateway connects on-premises infrastructure via Customer Gateway for hybrid connectivity. This pattern demonstrates AWS best practices for high availability, network segmentation, and secure hybrid cloud access. Fork this diagram on Diagrams.so to customize CIDR ranges, add additional AZs, or integrate with your existing network topology. Export as .drawio, SVG, or PNG for architecture documentation and compliance reviews.

People also ask

How do I design a highly available AWS VPC with public and private subnets across multiple availability zones?

Deploy a VPC across two AZs with public subnets (10.0.1.0/24, 10.0.3.0/24) hosting NAT Gateways and private subnets (10.0.2.0/24, 10.0.4.0/24) for EC2 instances. This diagram shows Internet Gateway for inbound traffic and VPN Gateway for hybrid connectivity.
