About This Architecture

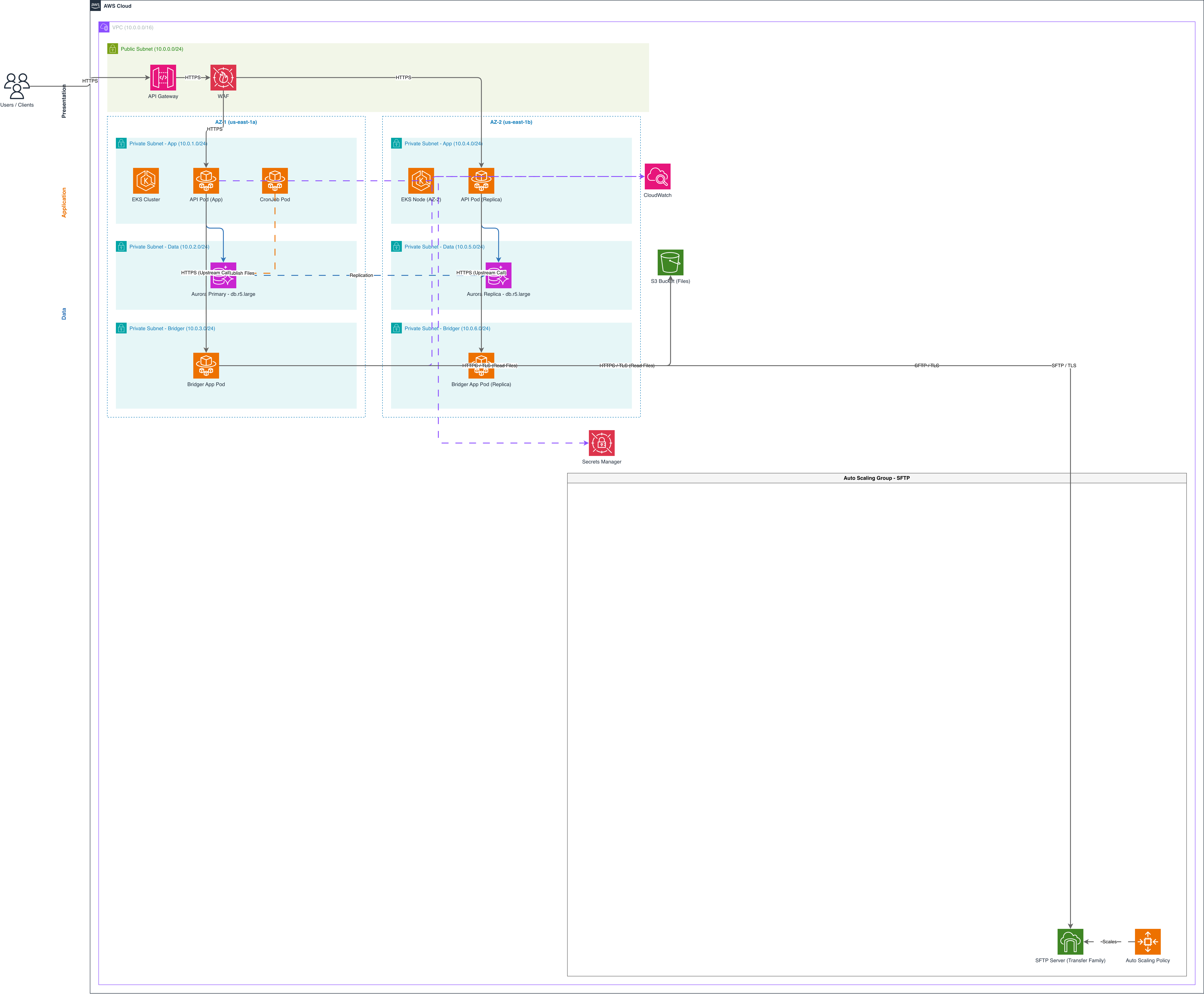

Multi-AZ EKS cluster with API and Bridger file processing pods, fronted by API Gateway and WAF for secure client access. API pods in private subnets connect to Aurora primary/replica databases across two availability zones, while Bridger pods orchestrate file transfers to S3 and AWS Transfer Family SFTP. CronJob pods trigger scheduled processing workflows, with all secrets managed via Secrets Manager and observability through CloudWatch. This architecture demonstrates high-availability Kubernetes workloads with stateful data persistence and asynchronous file handling. Fork and customize this diagram to adapt the pod topology, database tier, or file transfer protocols for your organization's compliance and performance requirements.

People also ask

How do I design a highly available EKS cluster for file processing with database replication and SFTP transfer?

This diagram shows a production EKS architecture spanning two availability zones with API pods behind WAF, Bridger file processors connected to Aurora primary/replica databases, and file routing to S3 and AWS Transfer Family SFTP. CronJob pods trigger scheduled workflows while Secrets Manager secures credentials and CloudWatch provides observability.
