About This Architecture

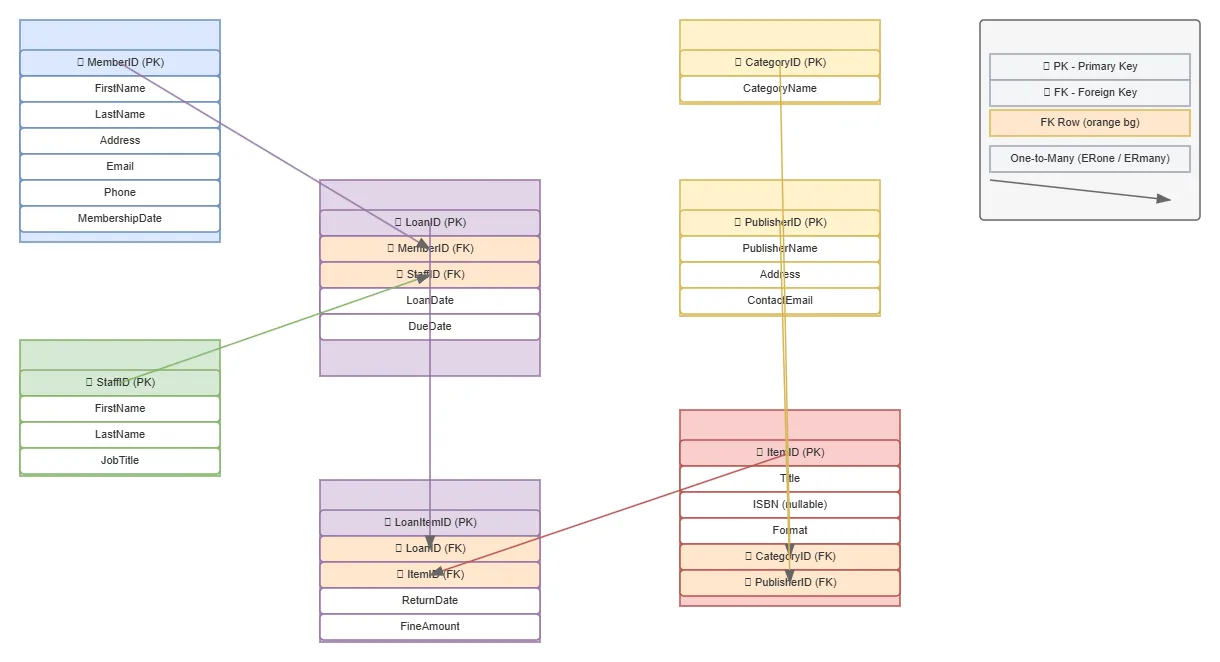

Library Management Database ER diagram models a complete relational schema for tracking members, staff, inventory, and loan transactions across multiple interconnected entities. The schema connects Member and Staff tables to Loan records, which reference Item inventory organized by Category and Publisher through foreign key relationships. This normalized design eliminates data redundancy and enforces referential integrity, enabling efficient queries for member loan history, overdue items, and fine calculations. Fork this diagram on Diagrams.so to customize table structures, add indexes, or adapt it for your library's specific workflows and reporting needs.

People also ask

What does a normalized database schema for a library management system look like?

This ER diagram shows a normalized relational schema with six core entities: Member and Staff manage users, Item and Category handle inventory, Publisher tracks sources, and Loan with LoanItem records borrowing transactions. Foreign keys enforce referential integrity across all relationships, enabling efficient tracking of member loan history, item availability, and fine calculations.
