Report Analysis and Output Display in MediSense

general · architecture diagram.

Diagrams.so

About This Architecture

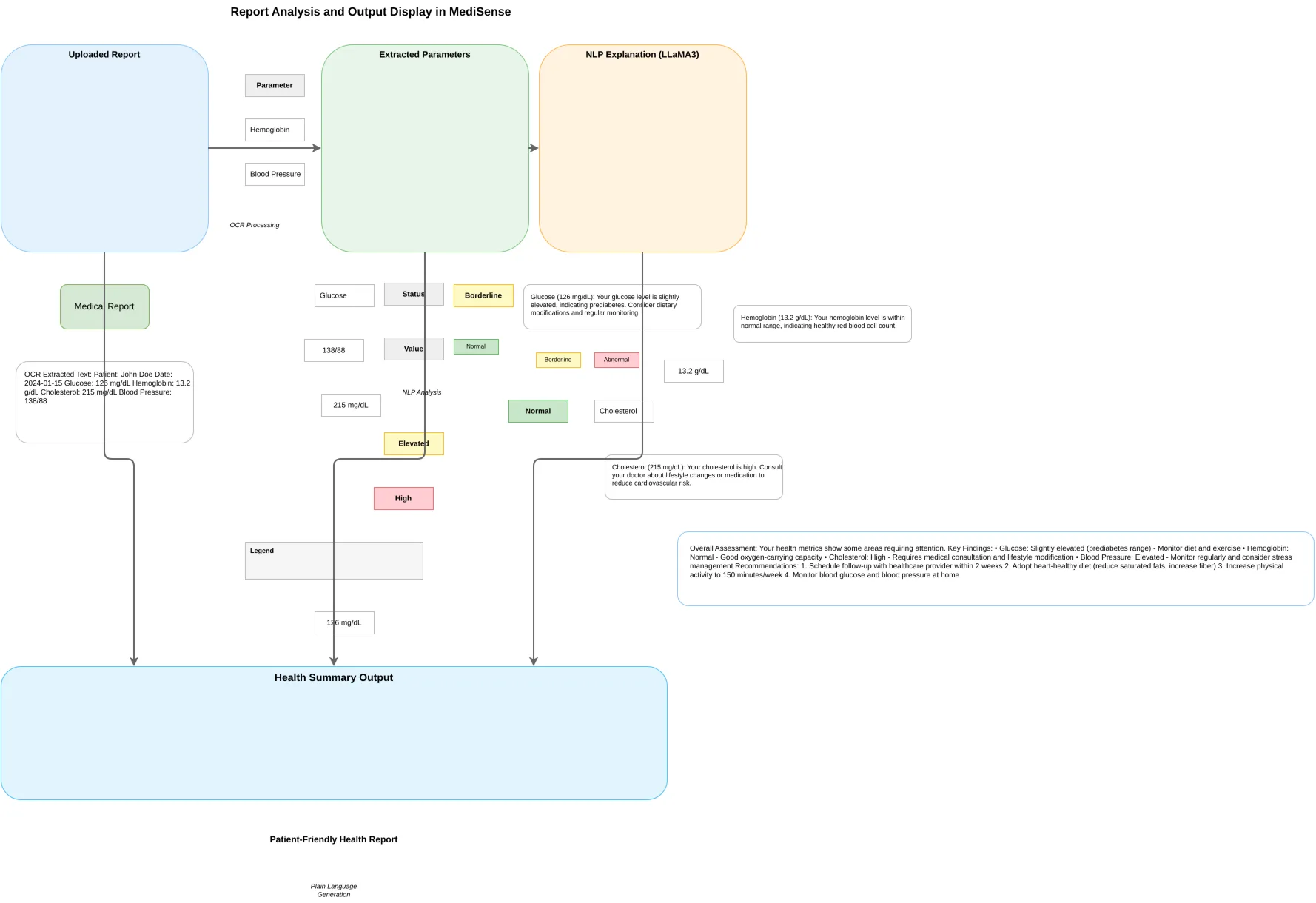

Medical report analysis pipeline combining OCR extraction, parameter parsing, and NLP-powered patient explanations. Uploaded medical reports flow through OCR processing to extract structured parameters (glucose, hemoglobin, cholesterol, blood pressure), which feed into LLaMA3-based NLP analysis generating plain-language health explanations. The MediSense architecture demonstrates how AI transforms clinical lab results into patient-friendly health summaries with color-coded status indicators (normal, borderline, abnormal). Healthcare developers can fork this diagram to design similar medical document processing workflows, customize the NLP explanation logic, or adapt the parameter extraction pipeline for different report formats.

People also ask

How do you build a medical report analysis system that converts lab results into patient-friendly explanations using OCR and NLP?

This MediSense architecture diagram shows a three-stage pipeline: OCR processing extracts structured parameters (glucose, hemoglobin, cholesterol) from uploaded medical reports, LLaMA3 NLP analysis generates plain-language explanations for each parameter, and all components feed into a patient-friendly health summary with color-coded status indicators.

Report Analysis and Output Display in MediSense

Autointermediatehealthcarenlpocrmachine-learningllama3medical-ai
Domain: Ml PipelineAudience: healthcare software developers building patient-facing medical report analysis systems
2 views0 favoritesPublic

Created by

February 17, 2026

Updated

February 25, 2026 at 3:40 PM

Type

architecture
