About This Architecture

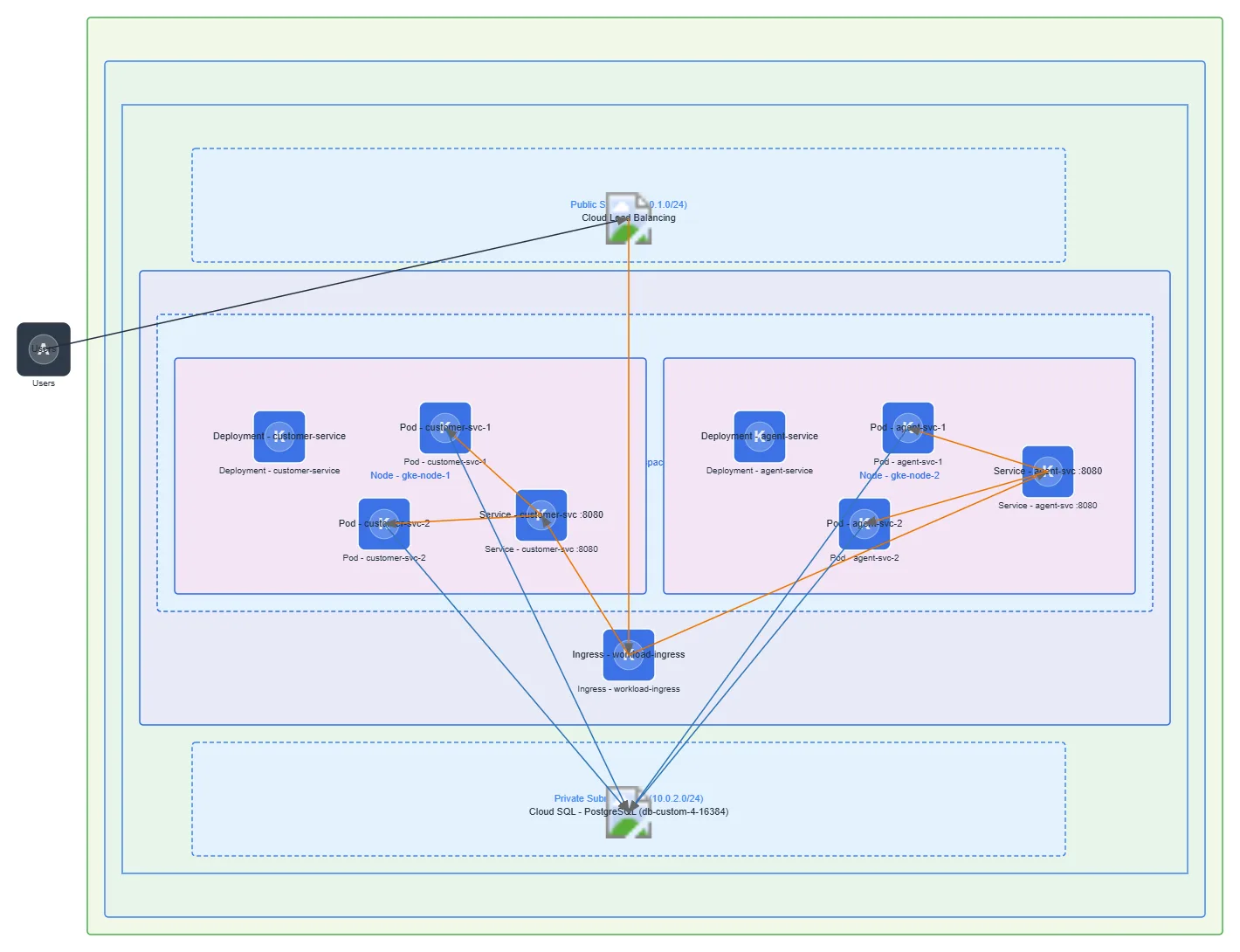

Multi-tier microservices architecture on GCP GKE with customer and agent services running in separate deployments across two nodes. Cloud Load Balancing routes external traffic through a Kubernetes Ingress to customer-svc and agent-svc, each backed by replicated pods for high availability. Both services connect to a managed Cloud SQL PostgreSQL instance in a private subnet, isolating database traffic within the VPC. This pattern demonstrates GKE best practices: namespace isolation, service discovery, horizontal pod autoscaling readiness, and secure database connectivity. Fork and customize this diagram on Diagrams.so to match your microservices topology, adjust node counts, or add additional services.

People also ask

How do I deploy multiple microservices on GCP GKE with load balancing and a managed database?

This diagram shows a production GKE setup where Cloud Load Balancing routes traffic through a Kubernetes Ingress to customer-svc and agent-svc deployments, each running replicated pods across nodes. All services securely connect to a Cloud SQL PostgreSQL instance in a private subnet, ensuring database isolation and compliance with VPC security best practices.
