AWS Three-Tier Web Application Architecture
About This Architecture

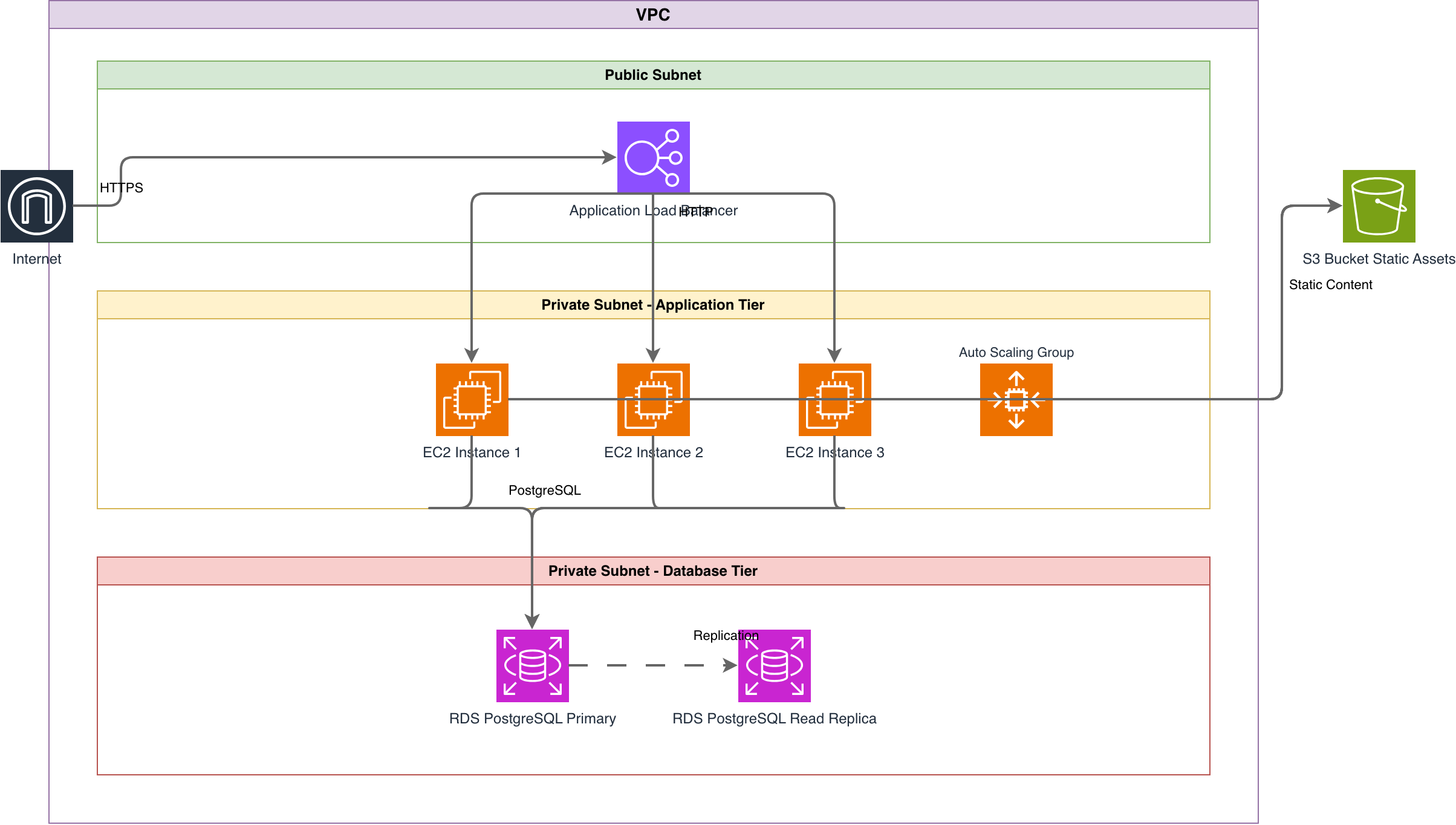

Three-tier AWS architecture separates web, application, and database layers across public and private subnets within a VPC. Internet traffic flows through an Application Load Balancer to an Auto Scaling Group of EC2 instances in the application tier. The database tier uses RDS PostgreSQL with a read replica for high availability, while S3 serves static assets. This pattern demonstrates AWS best practices for fault tolerance, horizontal scaling, and security isolation. Fork this diagram on Diagrams.so to customize instance types, add caching layers, or adapt for your workload.
People also ask
How do I design a three-tier web application architecture on AWS?
Use a VPC with public subnets for an Application Load Balancer and private subnets for EC2 instances in an Auto Scaling Group. Place RDS PostgreSQL with a read replica in a separate database tier and serve static assets from S3.
- Domain:
- Cloud Aws
- Audience:
- AWS solutions architects designing scalable, highly available web applications
Generated by Diagrams.so — AI architecture diagram generator with native Draw.io output. Fork this diagram, remix it, or download as .drawio, PNG, or SVG.
